![eStain™ L1 Protein Staining System]( "eStain™ L1 Protein Staining System")
eStain™ is a highly efficient protein PAGE gel staining system, which uses Coomassie Brilliant Blue and a patented protein staining technology developed by GenScript. eStain staining system integrates the traditional three steps of fixing-staining-destaining into one and can stain/destain two protein PAGE gels simultaneously in 10 minutes or less.
Automated fast staining in
10 minutes
Consistent results
for Coomassie blue staining
Compatible with
all types mini PAGE gelsSelected Filters
{{productcls1}}{{ itemName }}
Filters-
{{ category.name }}
{{ subCategory.name }}
{{ item.name }}
ResetConfirmNo Data
Applications
-
eStain® L1
Excellent sensitivity and repeatability with Coomassie Blue
Gel: ExpressPlus™ PAGE Gel, 4-12%, 10 wells (GenScript, M41210)
Program: Stain
Staining solution: Coomasie Blue
Time: 9 min 30 s
Gel: SurePAGE™ Gel, Bis-Tris, 4-12% (GenScript, M00653)
Membrane: GenScript nitrocellulose, PVDF membranes
Samples: Pre-stained protein standard (GenScript, M00624); unstained PAGE-Master protein standard (GenScript, M00516)
Program: Stain
Staining Solution: Ponceau S solution
Time: 9 min 30 s
Customer Testimonials
"We've incorporated eStain, the automatic gel staining system into our laboratory operations, which has notably reduced the time required for downstream protein detection. Overall, the suite of automated solutions provided by GenScript has streamlined our research endeavors considerably and made our research easy."
GenScript eStain User
Experienced scientist with expertise on
neglected tropical diseases (NTDs)"The eStain Automated Protein Staining Device reduced staining time from 2-3 hours to just 10 minutes, with consistent quality. Our team of scientists relies on eStain for all our protein staining work. I would say no one should be doing manual staining when there is a readily available automated solution in the market, such as the eStain." Read More >>
Andrew Lees
Fina BioSolutions LLC
Why choose eStain™ L1
-
Shortened workflow increases your productivity
The eStain Protein Staining System combines three steps of traditional Coomassie blue staining method into one single step to greatly reduce the time required for protein staining (Table 1).
Wash or Rinse Step Stain Step Destain or Rinse Step Time saved with eStain L1 eStain™ 0 min Electric Staining <10 min 0 min Staining reagent A Rinse 15 min Stain 1-3 hr Wash 1-3 hr 2 hr , 15 min-6 hr, 15 min Staining reagent B Wash 15 min Stain 1 hr Rinse 30 min 1 hr , 45 min Gelcode Blue Safe Protein Stain (Basic Protocol) Wash 15 min Stain 15 min-1 hr Destain 1-2 hr 1 hr , 30 min - 3 hr , 15 min -

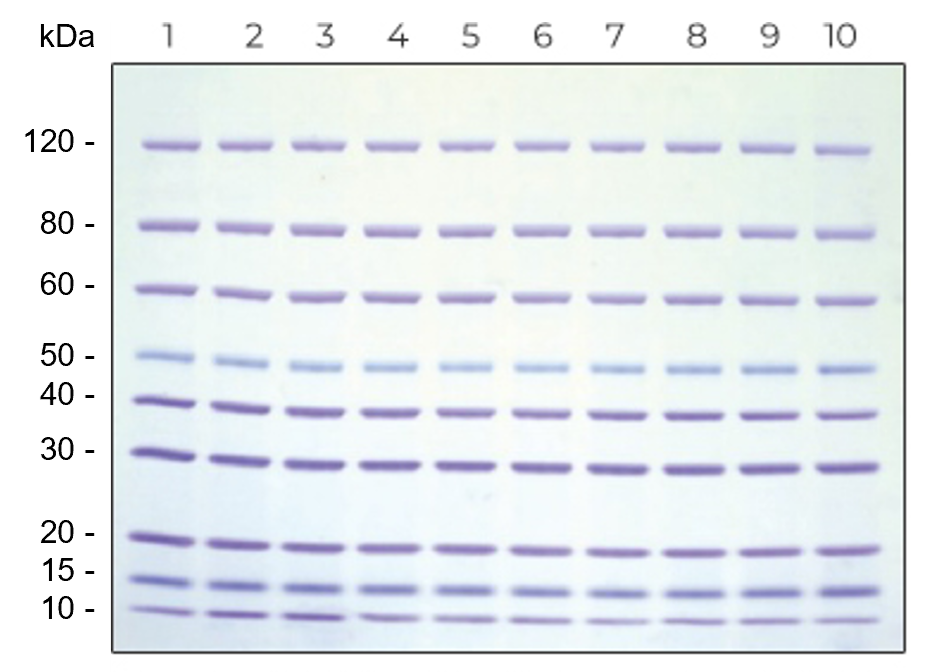

Excellent sensitivity and repeatability with Coomassie Blue
- Gel: ExpressPlus™ PAGE Gel, 4-12%, 10 wells (GenScript, M41210)
- Program: Stain
- Staining solution: Coomasie Blue
- Time: 9 min 30 s
-

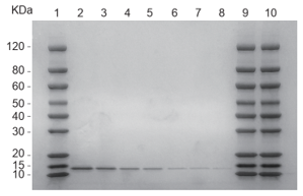

Compatibility for membrane staining with Ponceau S solution
- Gel: SurePAGE™ Gel, Bis-Tris, 4-12% (GenScript, M00653)
- Membrane: GenScript nitrocellulose, PVDF membranes
- Samples: Pre-stained protein standard (GenScript, M00624); unstained PAGE-Master protein standard (GenScript, M00516)
- Program: Stain
- Staining Solution: Ponceau S solution
- Time: 9 min 30 s
Product List
-
Device & Consumables
-
Extended Warranty
eStain™ Protein Staining Device
Cat. No. Product Name Quantity Price Order L00657eStain L1 Protein Staining Device $4980.00 eStain™ Kits
Cat. No. Product Name Quantity Price Order L00659eStain L1 staining kit $34.00 1unit Unit L00753eStain L1C Protein Staining Kit $102.00 1unit Unit Accessories
Cat. No. Product Name Quantity Price Order L00658eStain Gel Holder $349.00 2 unit L00661Liquid container $39.00 Resources
eStain Flyer
Free Download

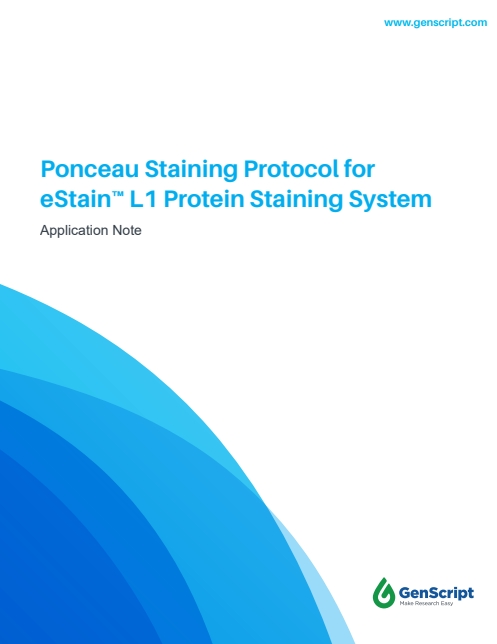

Ponceau Staining Application Note
Free Download

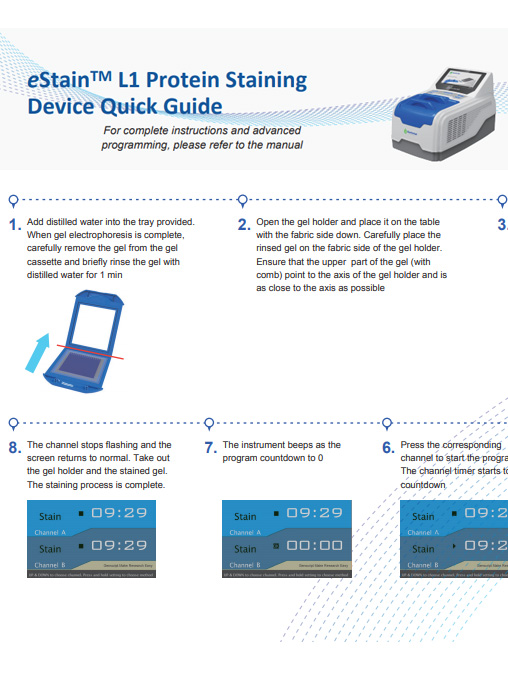

estain L1 Quick Reference Card
Free Download
eStain User Manual
Free DownloadRelated Products
eStain™ Ready for Your Lab
For more information, or to request a demonstration, please submit the form or email us at product@genscript.com
-
