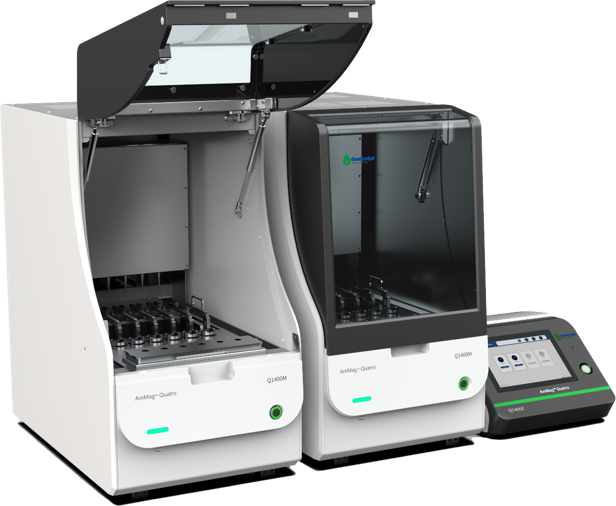

AmMag™ Quatro Maxi

Applicatoin Data

• Application Example 1: Comparison of AmMag™ Quatro Mini 1100 and Manual Extraction

  Plasmid: pTT5; Bacterial Strain: JM108; Culture Medium: TB; Culture Time: 16 hours; Bacterial Solution ODV: 17

  No.	Extraction thod	Concentration (ng/µl)	Yield (µg)	OD260/280	OD260/230	Endotoxin (EU/mg)	Supercoiling
  1	Quatro 1100	279.7	31.6	1.88	2.30	100-200	96.2%
  2	Manual	175.8	20.5	1.88	2.14	>20 w	95.4%

  AmMag™ Quatro Mini 1100 delivers comparable plasmid DNA concentration, yield, purity, and supercoiling to manual extraction, while offering lower endotoxin levels, making it ideal for downstream applications.

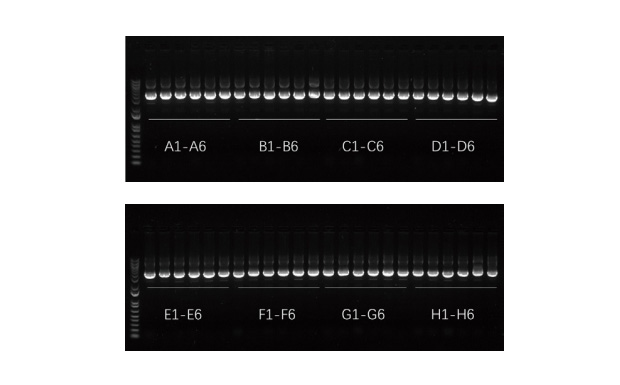

• Application Example 2: Uniformity Testing Using the Same Bacterial Culture (ODV16)in a 48-Well Plate

  Plasmid: pcDNA3.1; Bacterial Strain: DH5α; Culture Medium: TB; Culture Time: 16 hours; Bacterial Solution ODV: 16





  The AmMag™ Quatro Mini 1100 can purify 48 samples per run, delivering consistent quality pDNA with high yield, excellent supercoiling, and low endotoxin levels, making it ideal for downstream transfection applications

Video

Resources

GenScript’s AmMag™ Quatro Brochure

Automated large-scale, high-throughput plasmid purification solution

Free Download

GenScript’s AmMag™ Quatro Flyer

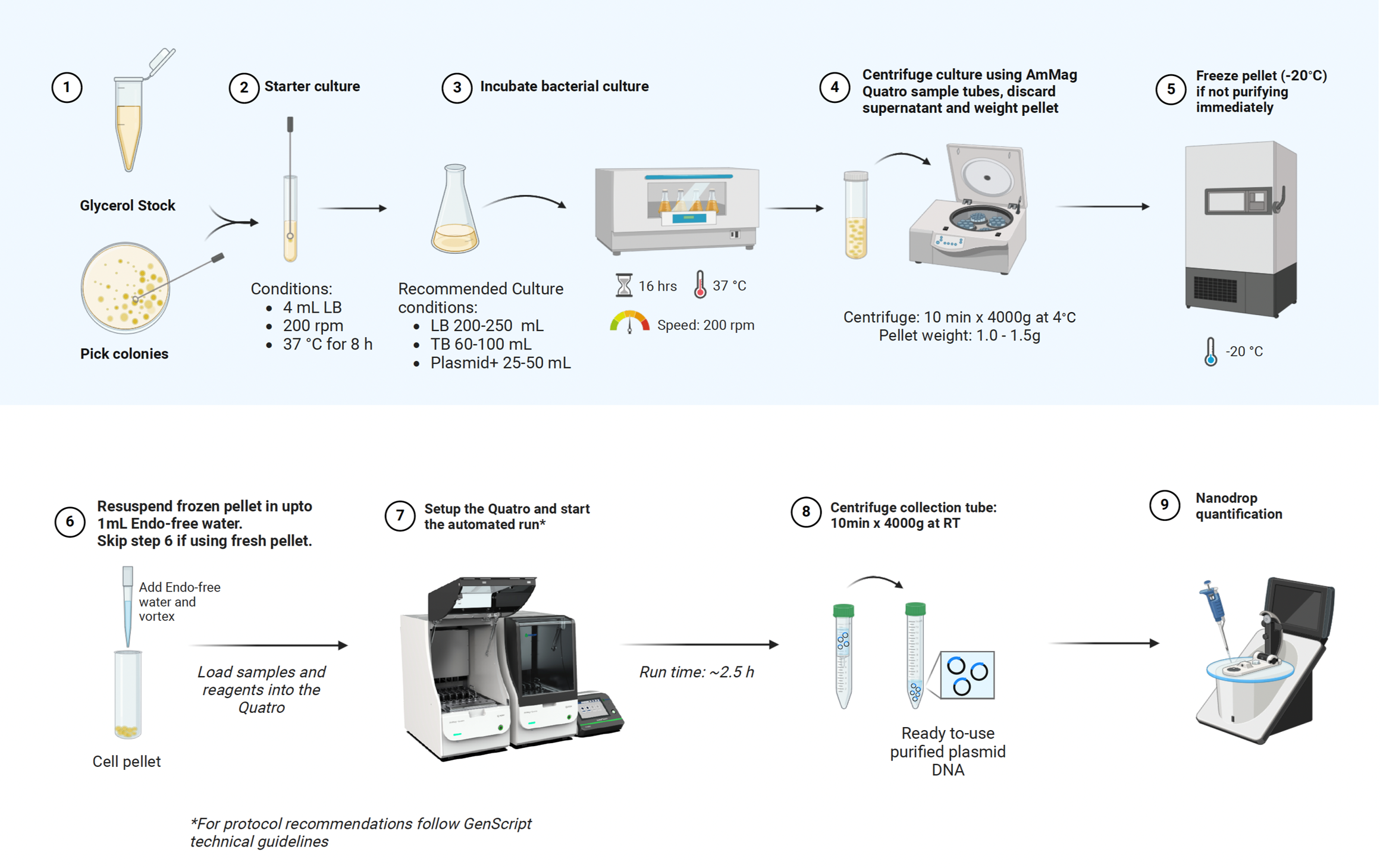

AmMag™ Quatro Maxi (1400) Purification Process

Free Download

Quatro Maxi Purification Process

AmMag™ Quatro Maxi (1400) Purification Process

Free Download

Quatro Maxi Virtual Demo Process

AmMag™ Quatro Maxi (1400) Virtual Demo Process

Free Download

AmMag™ Quatro 1400 Maxi-Scale Plasmid Purification

The AmMag™ Quatro 1400 system is designed for Maxi-Scale automated plasmid DNA purification.

Free Download

GenScript’s AmMag™ Quatro Webinar

Learn about automating Plasmid Maxi-prep with AmMag™ Quatro

Watch Now
